Straight Teeth System 直齿系统 CSHG Series
-精度等级Precision grade: JIS 2级. DIN6h25
-齿面处理 Tooth processing: 研磨/Grinding
-材质 Material: S45C
-齿面硬度：Tooth hardness: 45-50HRC
-齿型 Tooth type: 直齿/Straight teeth
-热处理 Heat treatment: 高频/High frequency

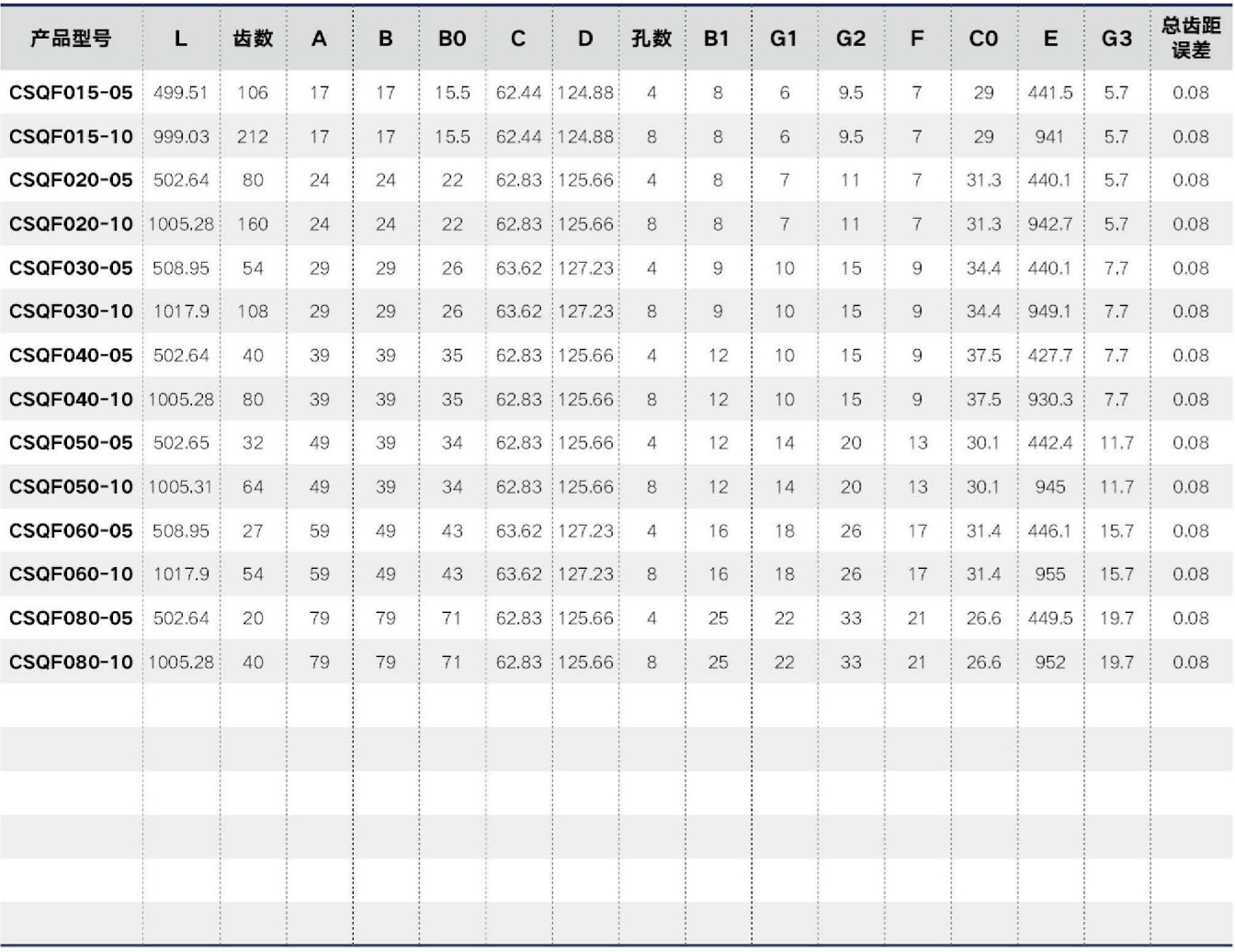

Straight Teeth System 直齿系统 CSQF Series
-精度等级Precision grade: JIS 3级, DIN7e25
-齿面处理Tooth processing: 精铣/Finish-milling
-齿面硬度 Tooth hardness: 15-20HRC
-材质 Material: S45C
-齿型 Tooth type: 直齿/Straight teethh
-热处理 Heat treatment: 调质Thermal refining

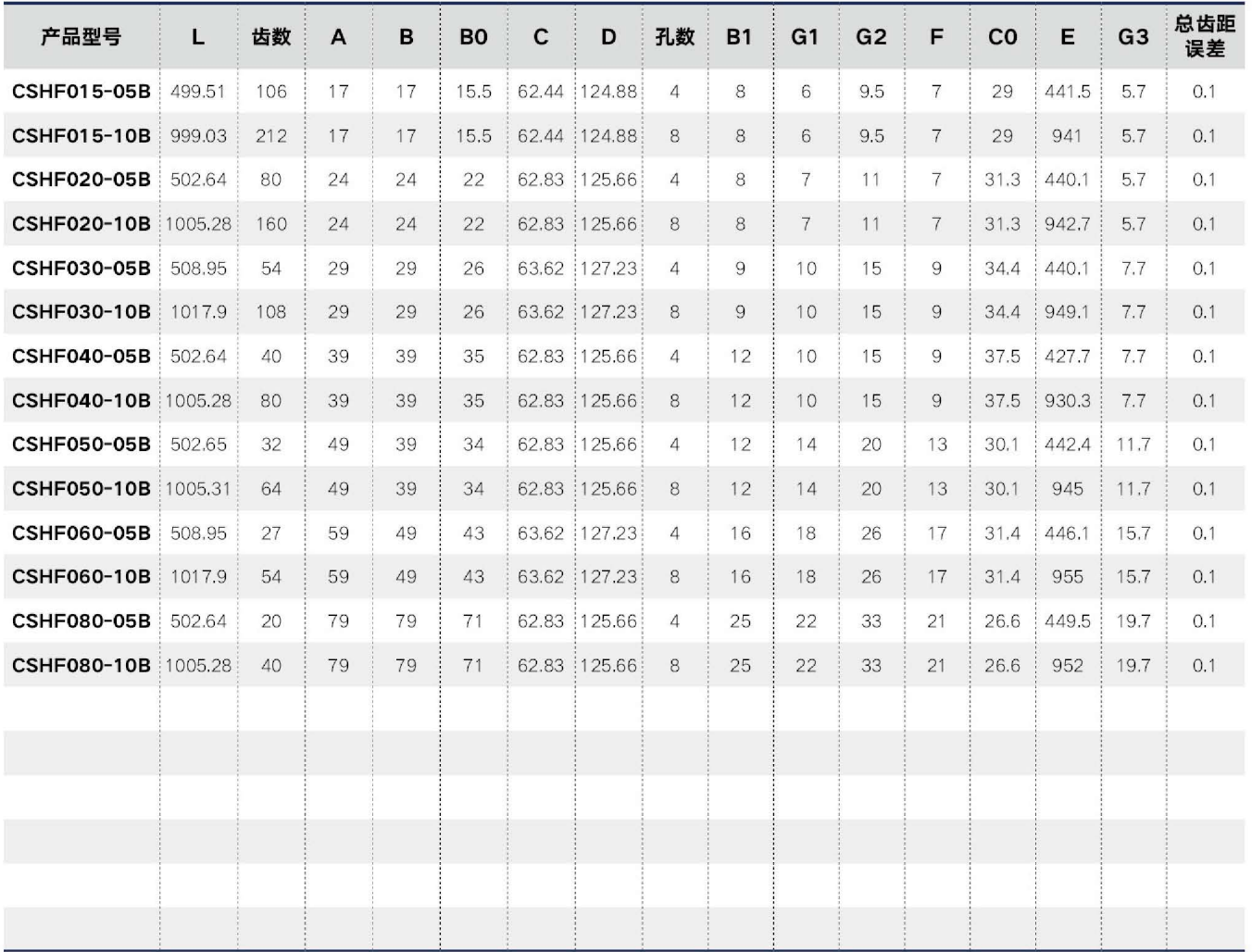

Straight Teeth System 直齿系统 CSHF Series
-精度等级 Precision grade: JIS 6级,DIN10e27
-齿面处理 Tooth processing: 精铣/Finish-milling
-齿面硬度 Tooth hardness: 45-50HRC
-材质 Material: S45C
-齿型 Tooth type: 直齿/Straight teeth
-热处理 Heat treatment: 高频/High frequency

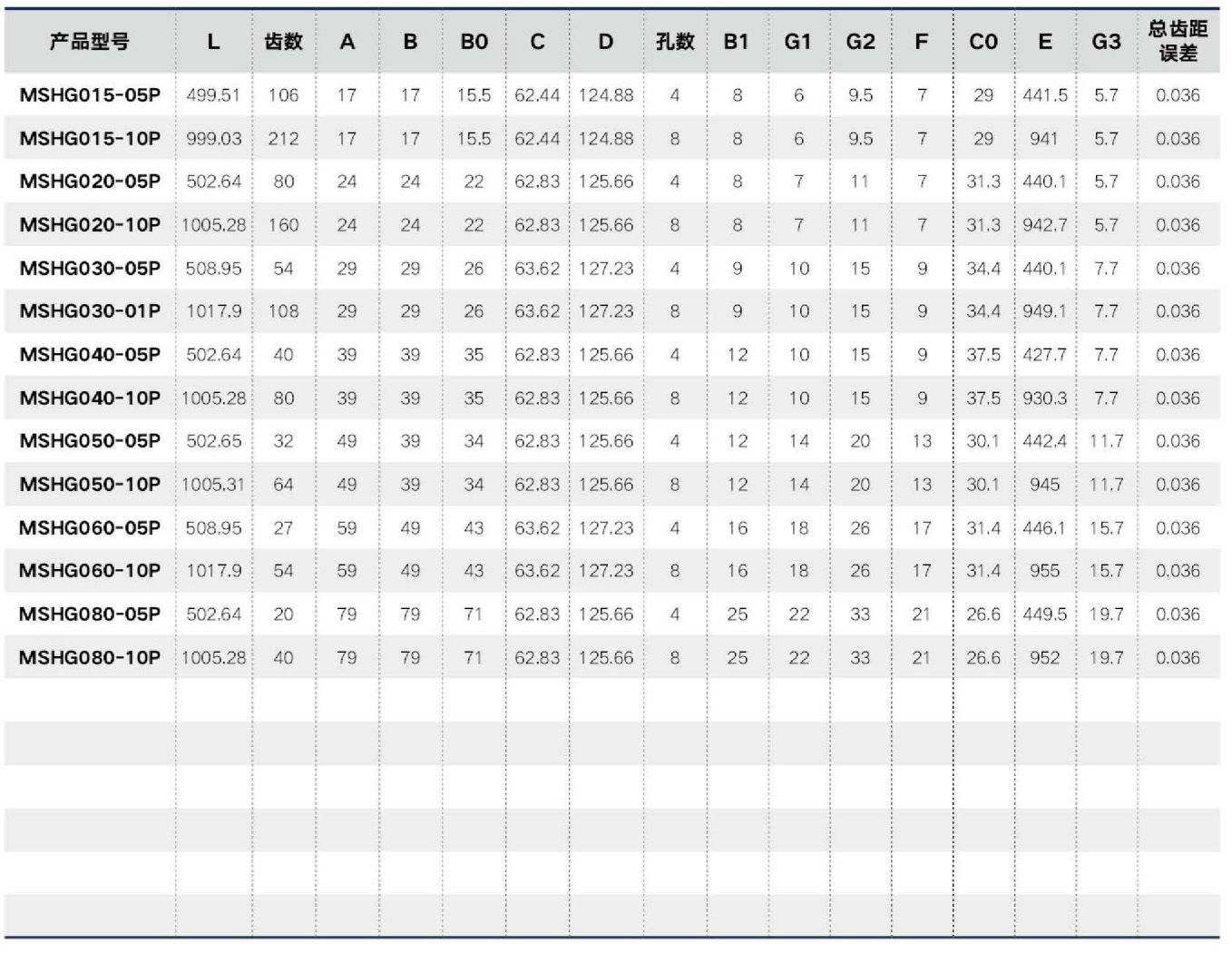

Straight Teeth System 直齿系统 MSHG Series
-精度等级Precision grade: JIS 5级, DIN9e27
-齿面处理 Tooth processing: 精铣/Finish-miling
-材质 Material: S45C
-齿型 Tooth type: 直齿/Straight teeth
-齿面硬度 Tooth hardness: 10-15HRC
-热处理 Heat treatment: 无/None
