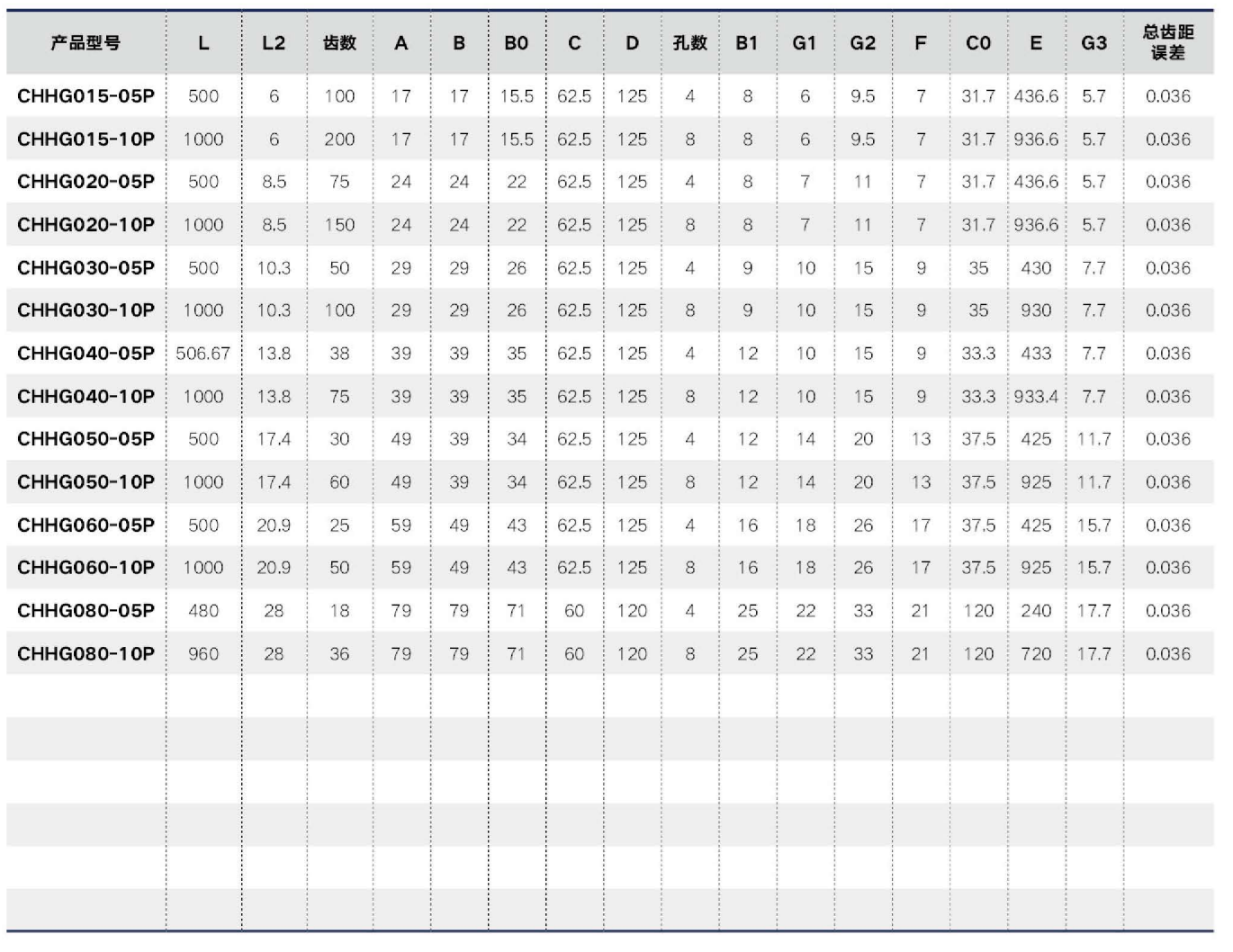

Helical Teeth System 斜齿系统 CHHG Series
-精度等级Precision grade: JIS 2级. DIN6h25
-齿面处理Tooth processing: 研磨/Grinding
-齿面硬度 Tooth hardness: 45-50HRC
-材质 Material: S45C1
-齿型 Tooth type: 右旋角/Right hand corner
-热处理 Heat treatment: 高频/High frequency

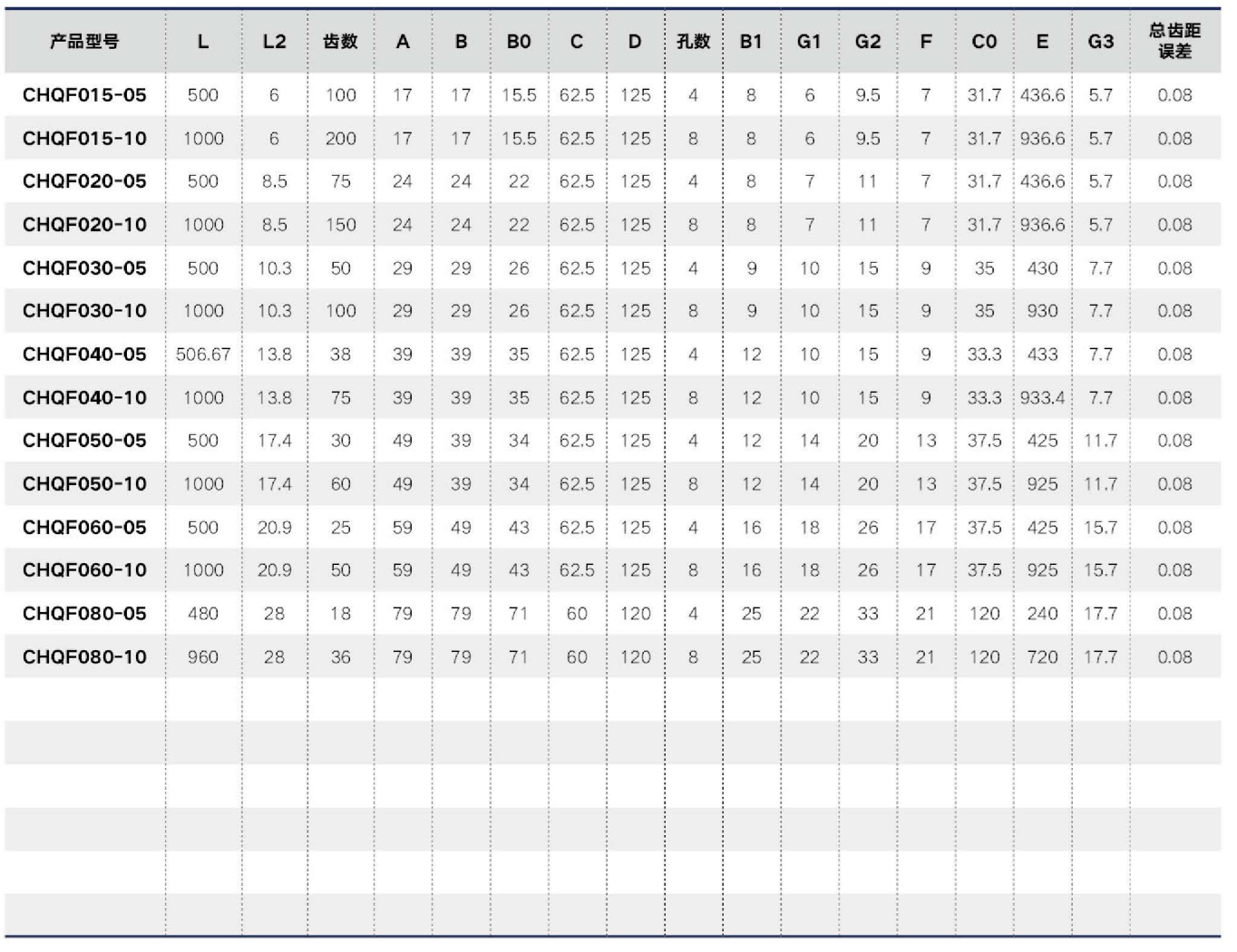

Helical Teeth System 斜齿系统 CHQF Series
-精度等级Precision grade: JIS 3级.DIN7e25
-齿面处理Tooth processing: 精铣/Finish-millin
-齿面硬度 Tooth hardness: 15-20HRC
-材质 Material: S45C
-齿型 Tooth type: 右旋角/Right hand corner
-热处理 Heat treatment: 调质/Thermal refing

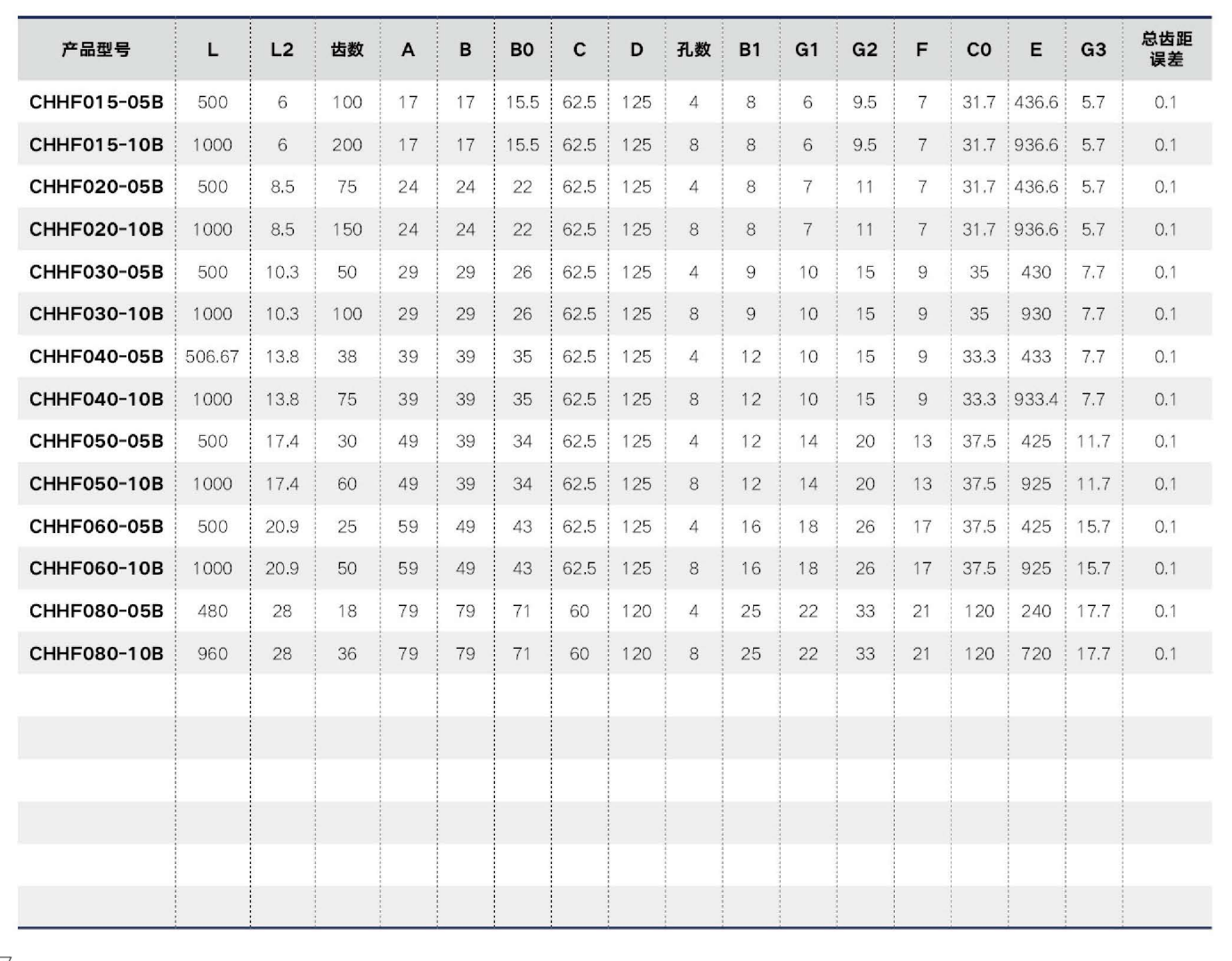

Helical Teeth System 斜齿系统 CHHF Series
-齿面处理 Tooth processing: 精铣/Finish-milling
-精度等级 Precision grade: JIS 6级,DIN10e27
-齿面硬度 Tooth hardness: 45-50HRC
-材质 Material: S45C
-齿型 Tooth type: 右旋角/Right hand corner
-热处理 Heat treatment:高频/High frequency

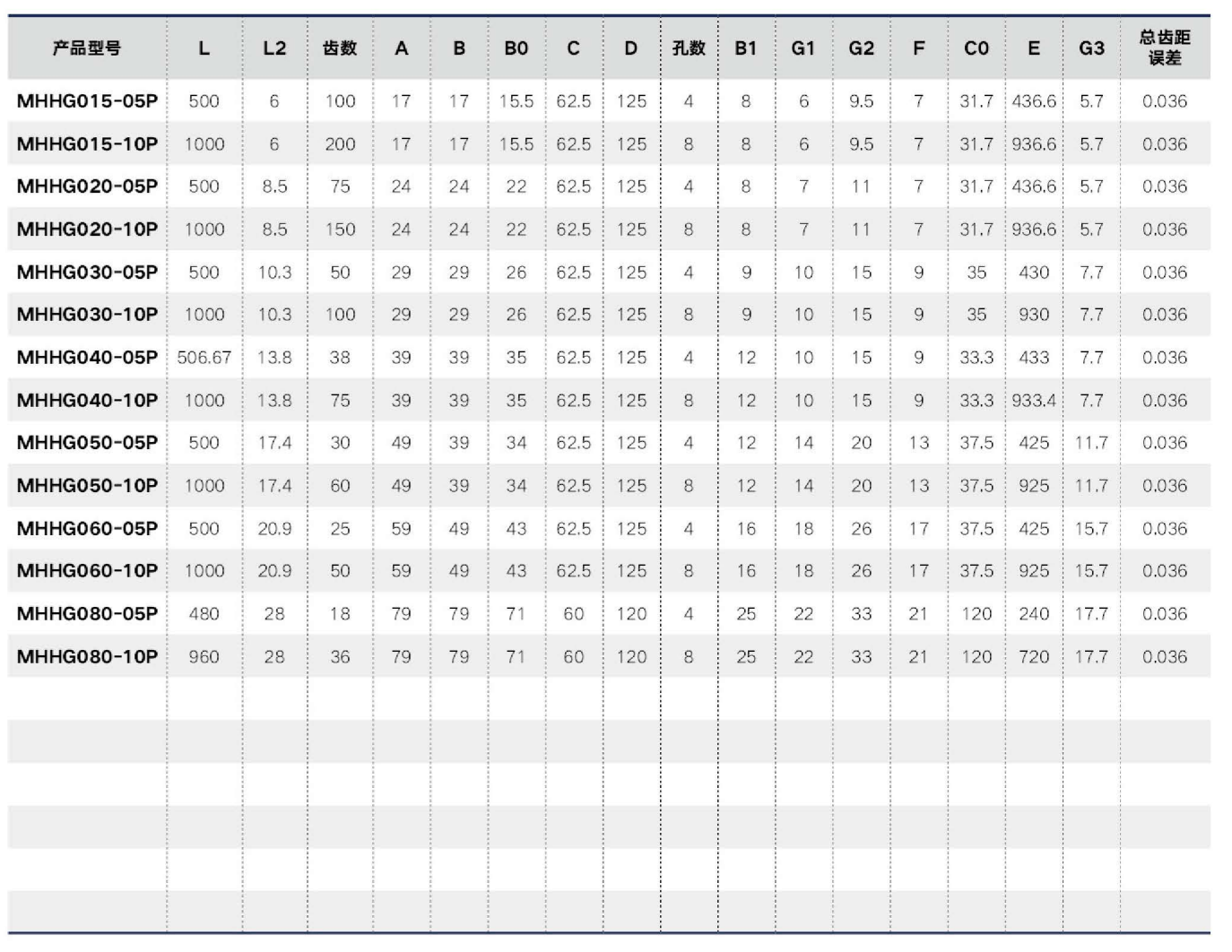

Helical Teeth System 斜齿系统 MHHG Series
-精度等级Precision grade: JIS 2級级.DIN6e25
-齿面处理 Tooth processing: 研磨/Grinding
-齿面硬度 Tooth hardness: 45-50HRC
-材质 Material: SCM420
-齿型 Tooth type: 右旋角/Right hand corner
-热处理 Heat treatment: 高频/High frequency
